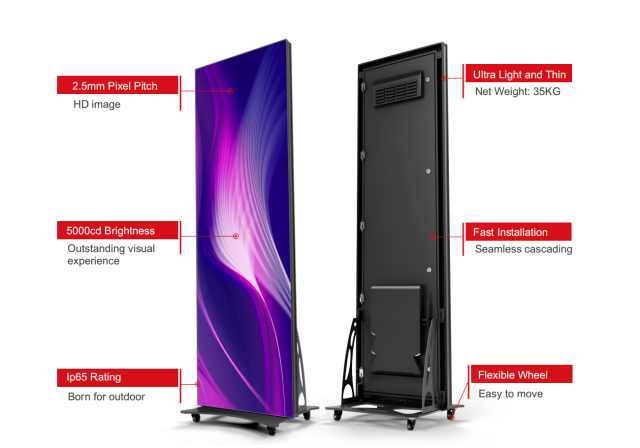

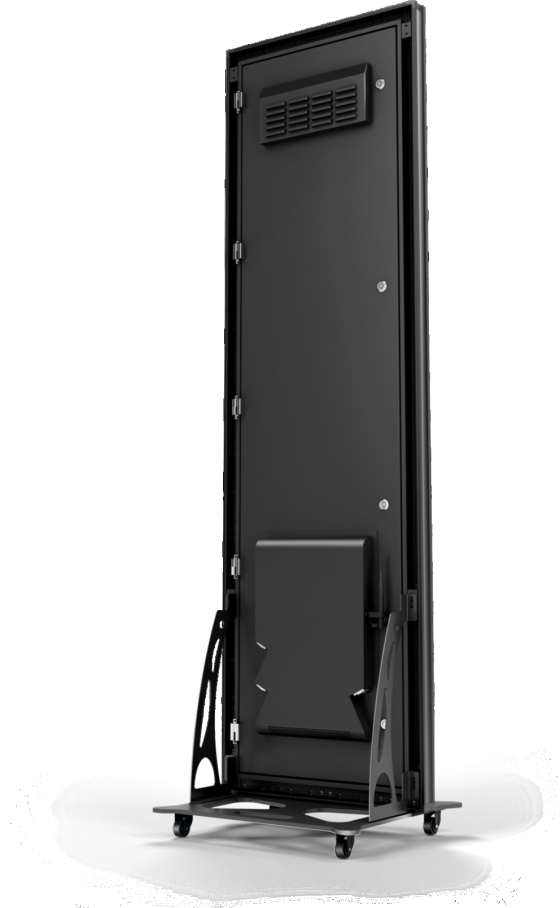

HL-Outdoor LED Poster Display
Dimension: 640*1920*50mm
Pixel Pitch Indoor: 1.53mm, 1.86mm, 2.0mm, 2.5mm
Weight : 41KG/set
Plug and Play
Slim Appearance
Attractive Display
Mobile App
Wifi Control
Pixel Pitch Indoor: 1.53mm, 1.86mm, 2.0mm, 2.5mm
Weight : 41KG/set
Plug and Play
Slim Appearance
Attractive Display
Mobile App
Wifi Control
Hightlight Outdoor high definition fine pitch LED posters could be widely applied in creative events , enterprises,retails,
shopping mall , exhibition center.
|
Product Features
Plug &Play , Seamless Splicing , Better Protection , Front Access ,HD Image Quality , Flexible Bracket.
|
 |
 |
Different Installation wayMultiple screen splicing ,no edge line.
|
Technical Parameters
| HL-Outdoor Led Poster Display | ||||
| Pixel Pitch | 1.53 mm | 1.86 mm | 2.0 mm | 2.5 mm |
| LED | SMD1010/GOB | SMD1515/GOB | ||
| Cabinet Size(W*H) | 640mm * 1920mm | |||
| Cabinet Resolution(W*H) | 416 * 1248 | 344 * 1032 | 320 * 960 | 256 * 768 |
| Refresh Frequency | 3840Hz | |||
| Cabinet Weight | 43.0KG | |||
| Brightness(nits) | >2500 | >3000 | >3500 | |
| Viewing Angle | 160°/160° | |||
| Input Voltage | 110-220VAC | |||
| Max.Power Consumption | 600W/m² | |||
| Ave.Power Consumption | 180W/m² | |||
| IP Rating | IP55 | |||
| Operating Equipment | Phone, Ipad, PC | |||
* Above parameters are typical values, which are adjustable according to different project reqiurements.
