Ouodoor Fixed screen (HL-T pro Series)
P3.91/P4.81/P6.25/P7.81/P10.42
▶Delicate structure, Seamless splicing, perfect flatness, fanless cooling system.
▶High precision Aluminum cabinet frame Flatness≤0.015mm.
▶Front side viewing--Matte corrugation module mask To achieve ultra-high contrast.
▶Support full-front and rear maintenance. Suits for all outdoor applications.
▶Both front and rear side to achieve IP65.
▶Delicate structure, Seamless splicing, perfect flatness, fanless cooling system.
▶High precision Aluminum cabinet frame Flatness≤0.015mm.
▶Front side viewing--Matte corrugation module mask To achieve ultra-high contrast.
▶Support full-front and rear maintenance. Suits for all outdoor applications.
▶Both front and rear side to achieve IP65.
Product Description

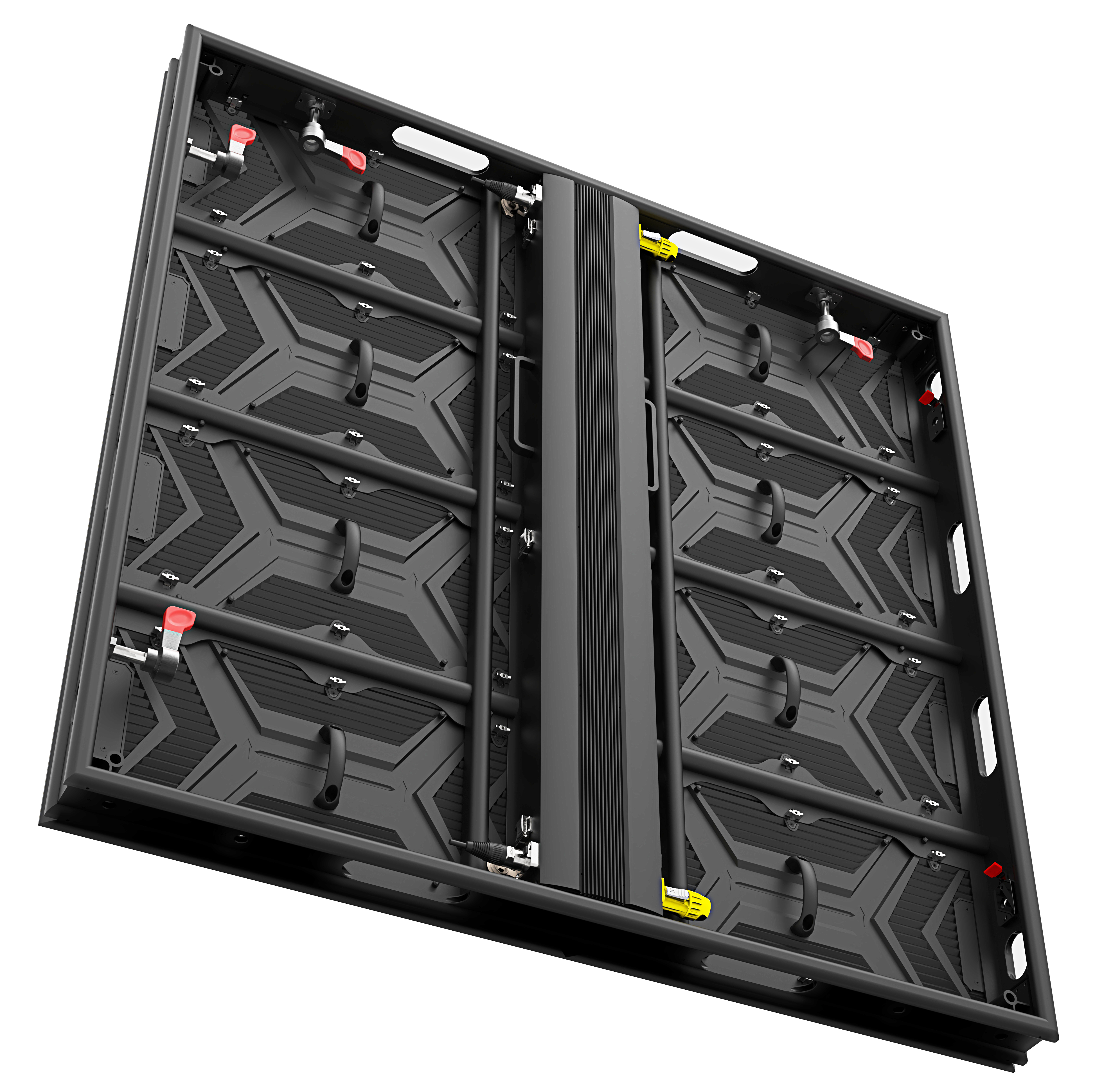

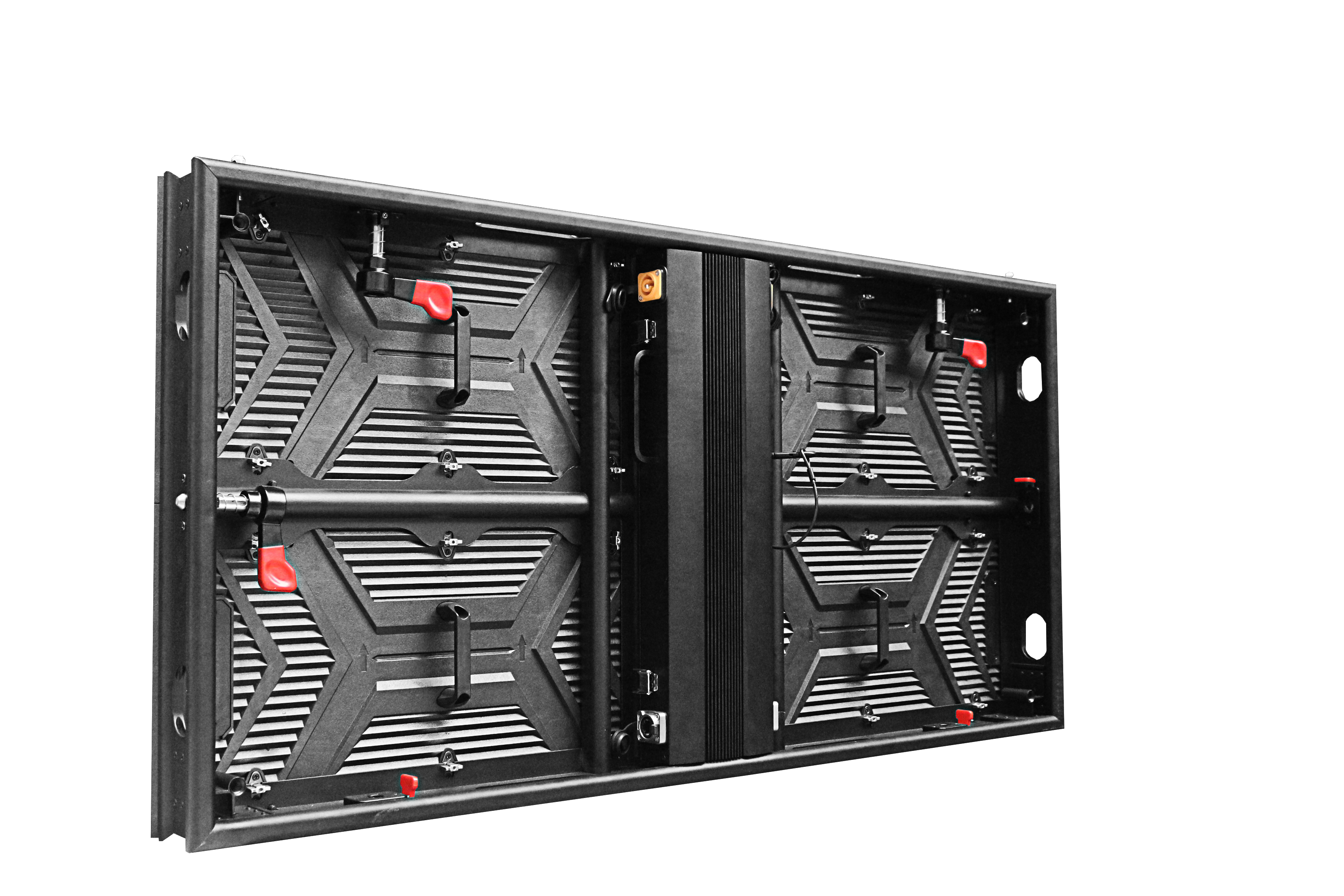

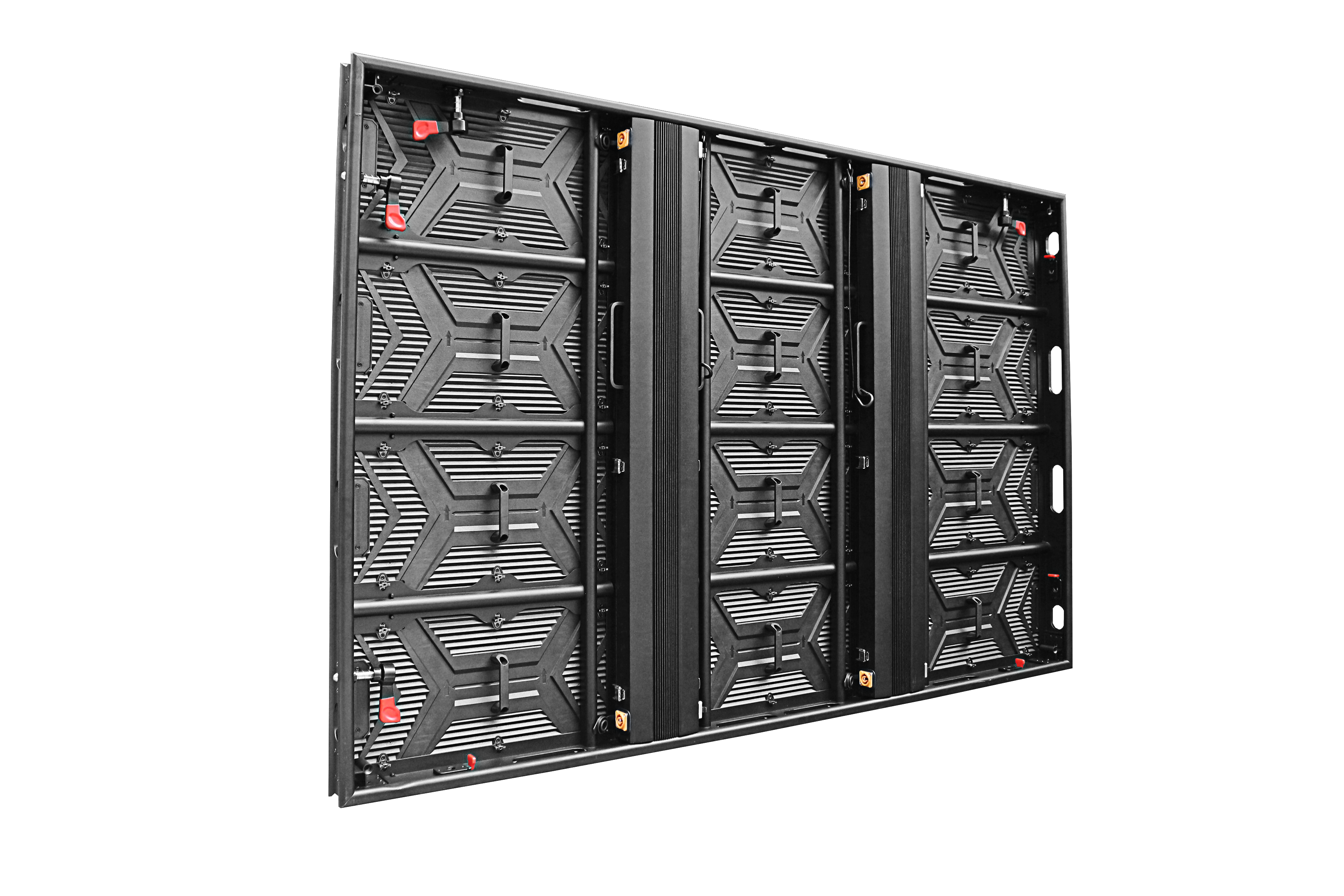

Aluminum profile cabinet is light weight, which saves tranportation cost and installation cost.
IP65 Waterproof for both front&back side.
Steel material fast lock system.
High precision aluminum cabinet frame.
Fast installation · Perfect flatness splicing.
|
Full front&rear Maintenance
Meets various outdoor application. |
 |
 |
Seamless splicing Delicate structure Seamless splicing Perfect flatness |
Technical Parameters
| Outdoor Fixed Cabinet (HL-T pro Series) | ||||
| Pixel Pitch | 3.91mm | 4.81 | 6.25 mm | 10.42 mm |
| LED | SMD1921 | SMD2727 | SMD3535 | |
| Cabinet Size(W*H) | 1000mm x1000mm x 83mm | |||
| Cabinet Resolution(W*H) | 256*256 | 208*208 | 160*160 | 96*96 |
| Refresh Frequency | 3840Hz | |||
| Cabinet Weight | 22.5KG | |||
| Brightness(nits) | >5500 | >6000 | ||
| Viewing Angle | 160°/140° | |||
| Input Voltage | 110-220VAC | |||
| Max.Power Consumption | 650W/m² | |||
| Ave.Power Consumption | 220W/m² | |||
| IP Rating | IP65 | |||
| Operating Equipment | PC with Novastar controler or other | |||
* Above parameters are typical values, which are adjustable according to different project reqiurements.

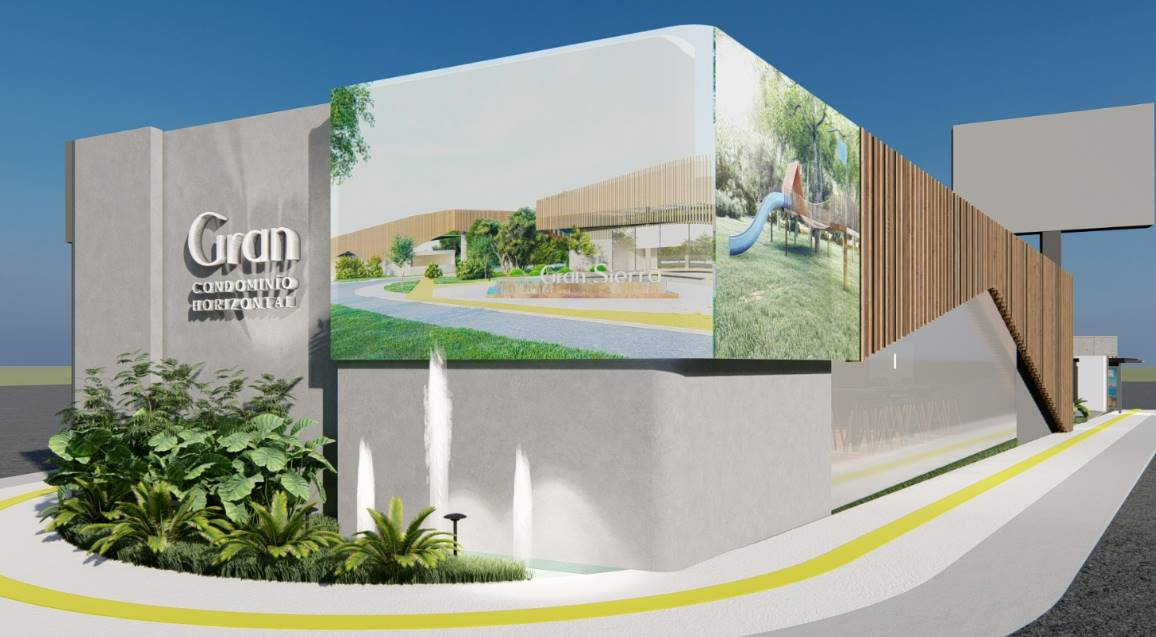

Related Application
 |
 |
