Indoor Transparent Led Display
Delicate frame design.
High transparency.
Light weight,only 5.2kg/panel
High brightness,high contrast
Easy moving, fast installation
High transparency.
Light weight,only 5.2kg/panel
High brightness,high contrast
Easy moving, fast installation
Product Description
|

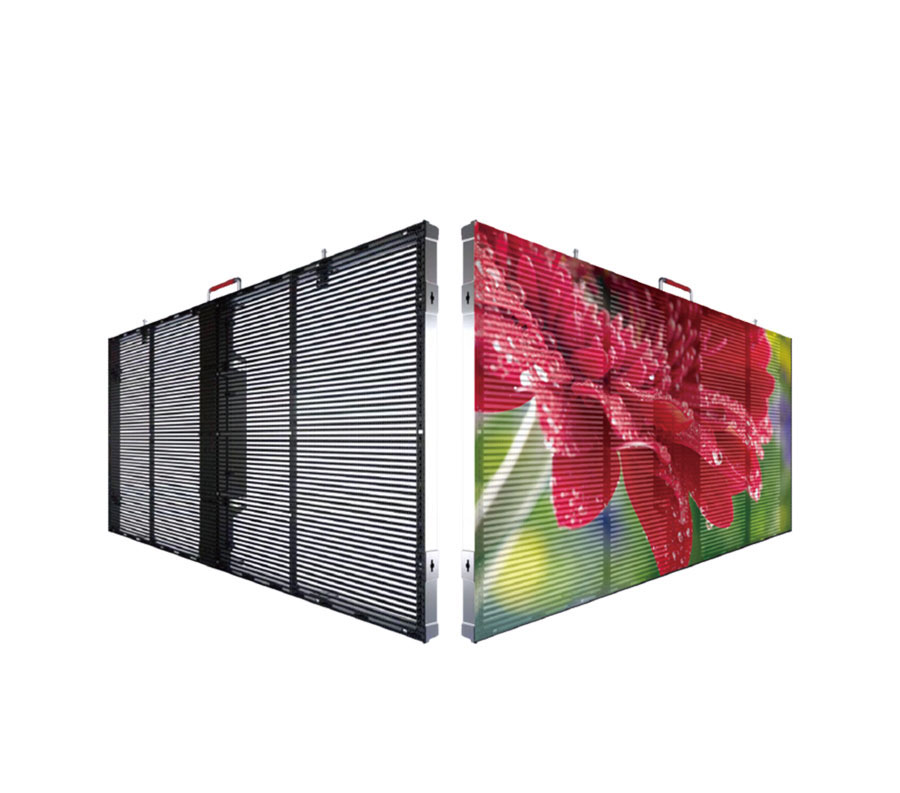

Delicate cabinet frame
The frame thickness is only 33mm. Standardization cabinet 1000x500mm. Strip PCB design allows transparency.
|
 |
 |
Light weight
5.2kg/panel 60% lighter than the traditional screens |
|
High Transparency
Transparent LED displays are available in variety of pixel pitches, which affect the transparency of the LED display.
Lower pixel pitch offer more pixel density, less transparent, higher resolution
|
 |
 |
Easy,fast splicing
Standardization design Support hanging and stack installation Can be assembled arbitrarily |
Technical Parameters
| Series | Indoor Transparent Led Display | |||
| Pixel Pitch | 3.91-7.82mm | 7.8mm | 10.416mm | 15.625mm |
| LED | SMD1921 | SMD2727 | SMD2727 | SMD1515 |
| Cabinet Size(W*H) | 1000mm * 500mm | 1000mm * 500mm | 1000mm * 500mm | 1000mm * 500mm |
| Cabinet Resolution(W*H) | 256*64 | 128*64 | 96*48 | 64*32 |
| Refresh Frequency | 3840/Hz-7680hz | 3840/Hz-7680hz | 3840/Hz-7680hz | 3840/Hz-7680hz |
| Cabinet Weight | 5.2KG | 5.2KG | 5.2KG | 5.2KG |
| Brightness(nits) | >600 | >600 | >600 | >600 |
| Color temperature | 6500K (Adjustable) | |||
| Grayscale Level | 14-16bits | |||
| Viewing Angle | 160°/160° | 160°/160° | 160°/160° | 160°/160° |
| Input Voltage | 110-220VAC | 110-220VAC | 110-220VAC | 110-220VAC |
| Max.Power Consumption | 500W/m² | 500W/m² | 500W/m² | 500W/m² |
| Ave.Power Consumption | 160W/m² | 160W/m² | 160W/m² | 160W/m² |
| IP Rating | IP30 | |||
| Operating Equipment | PC with Novastar controler or other | |||
| Certification | RoHS/FCC/CE | |||
* Above parameters are typical values, which are adjustable according to different project reqiurements.

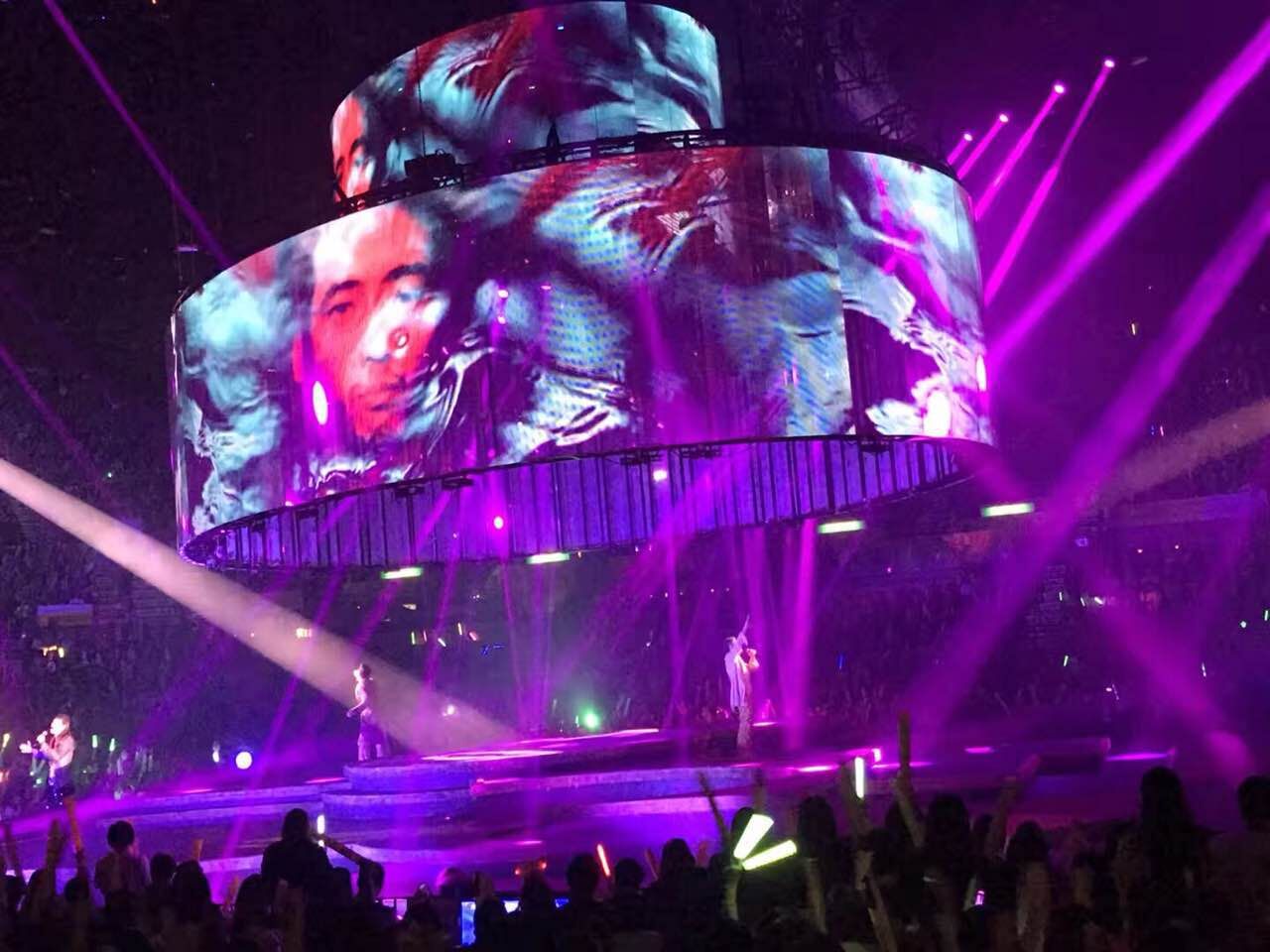

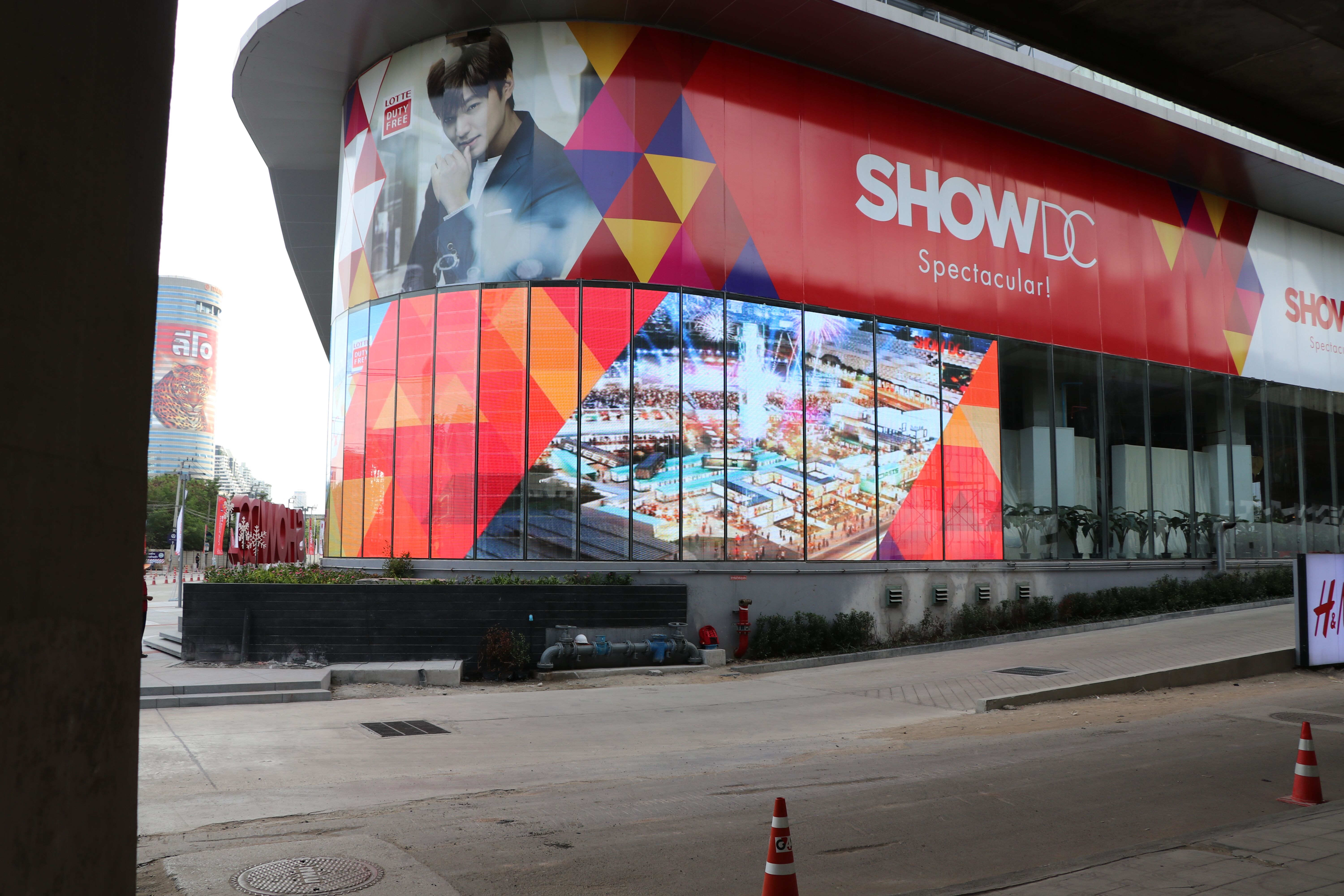

Related Application
 |
 |
