Indoor fixed Fine Pitch (HL- X1 Series)

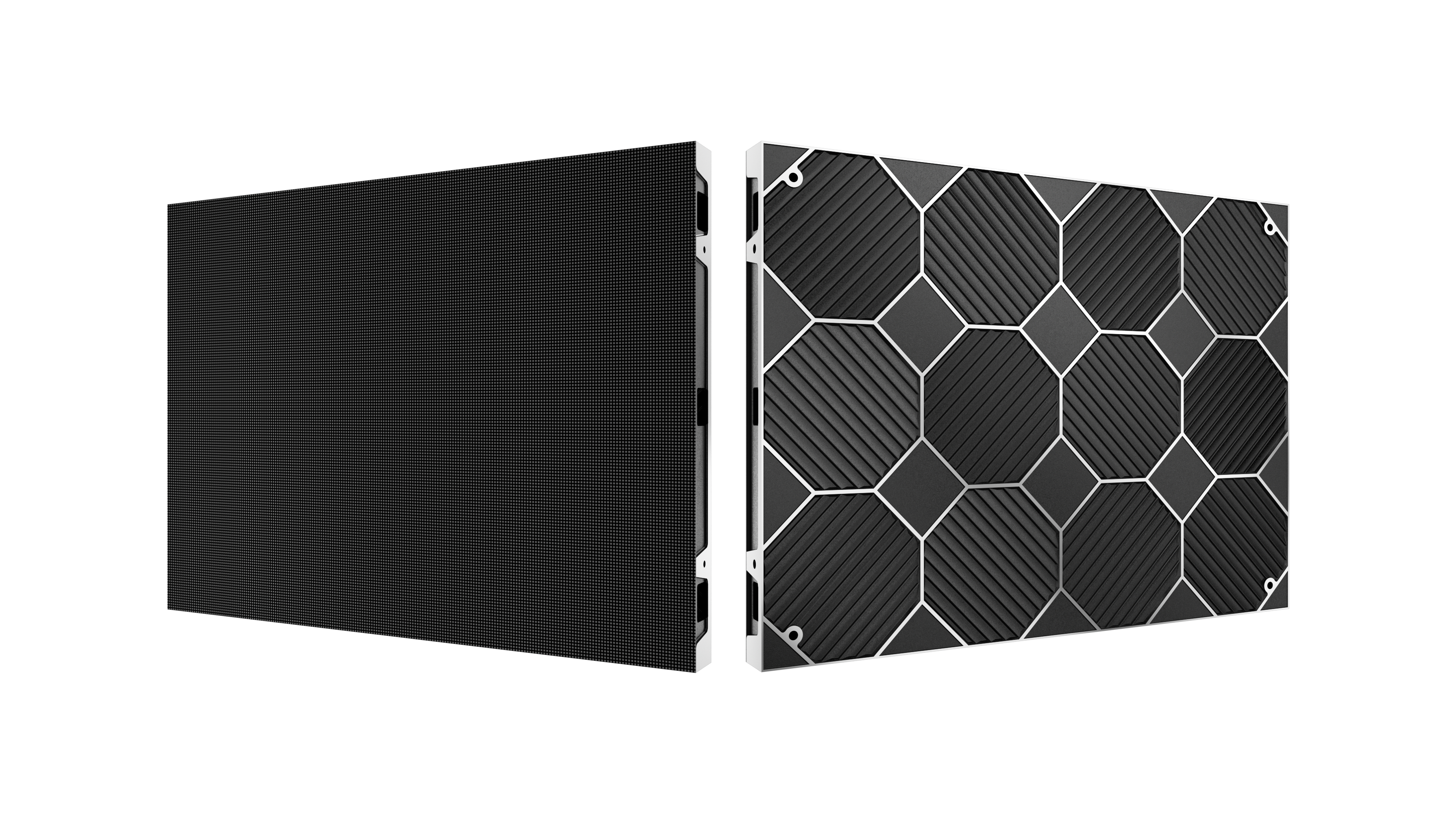

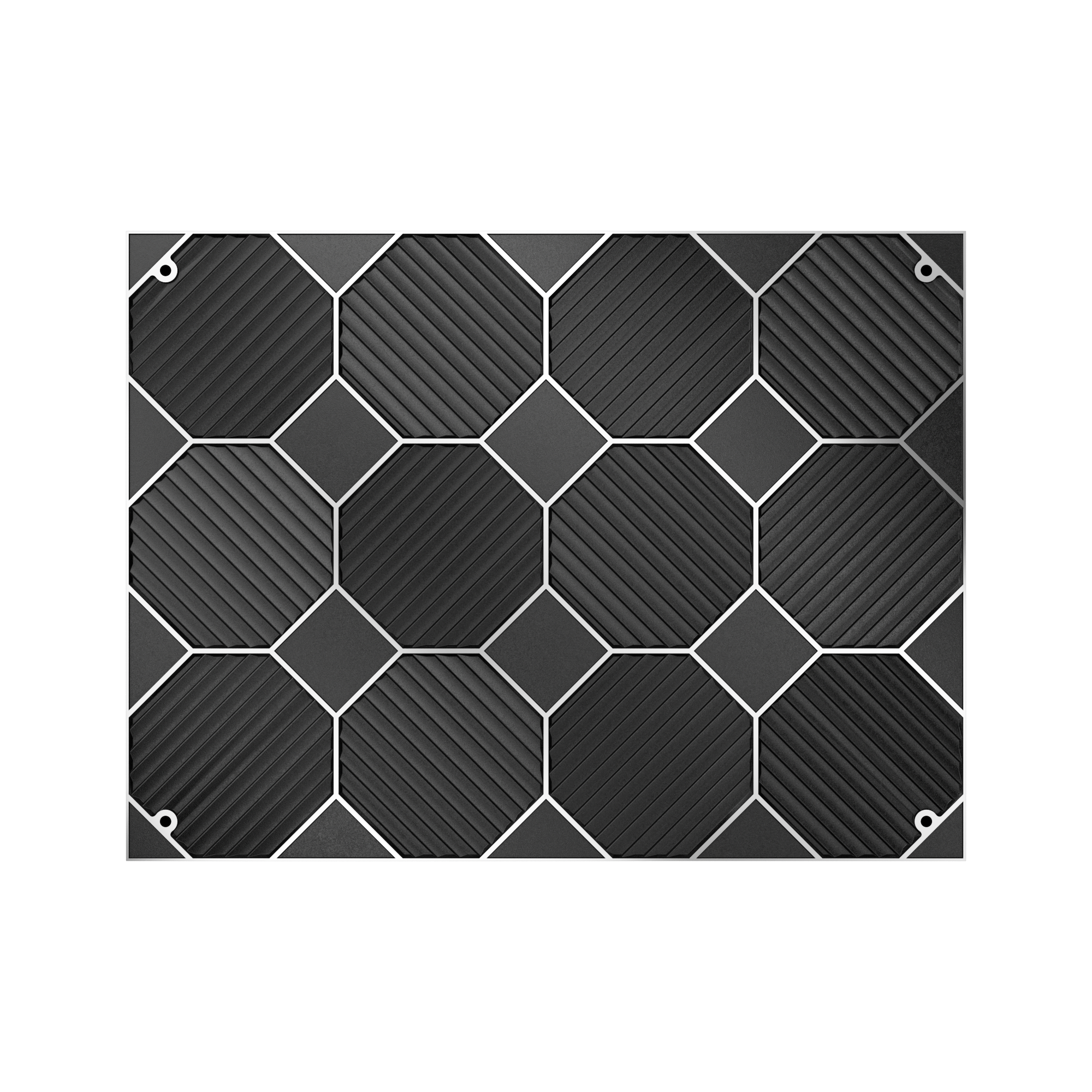

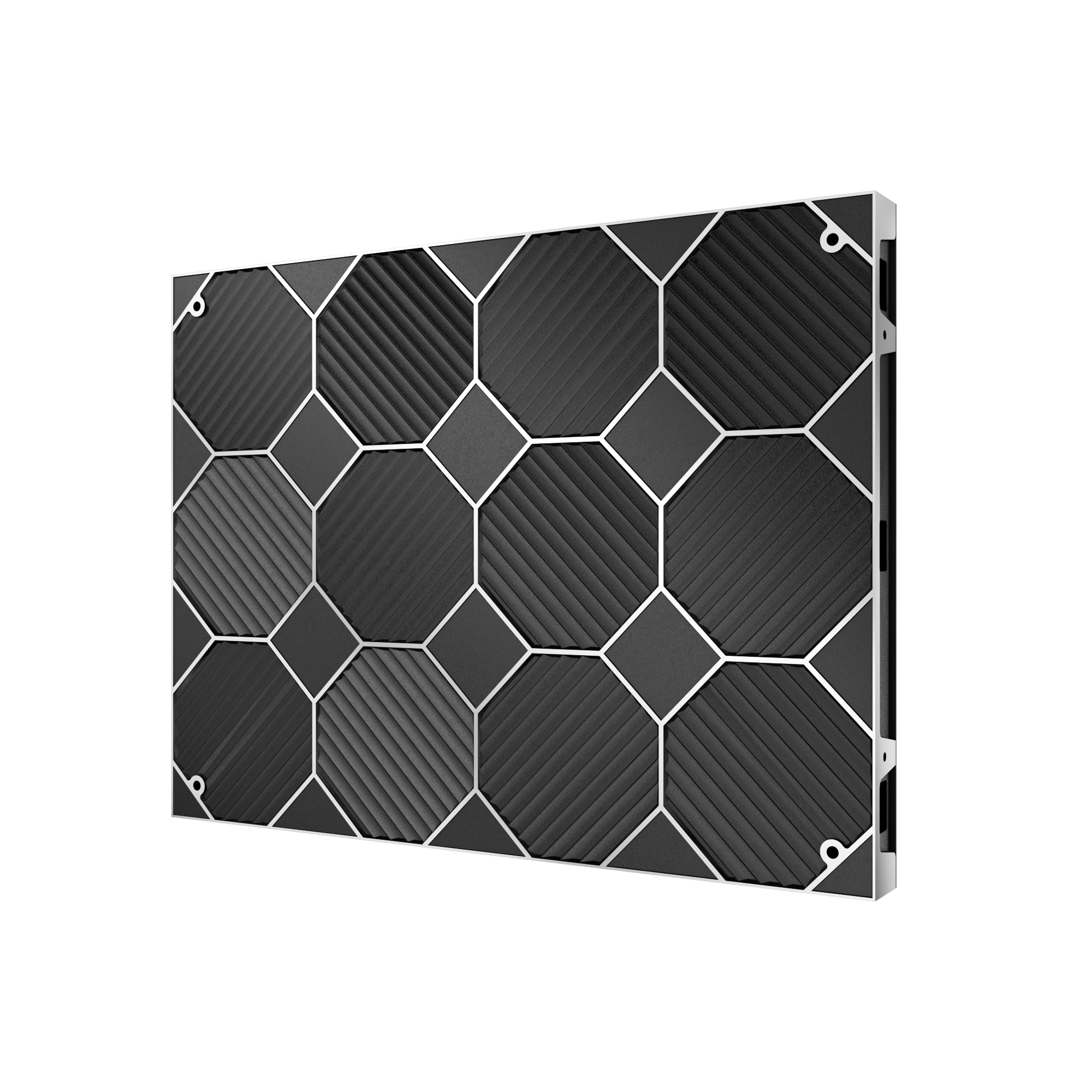

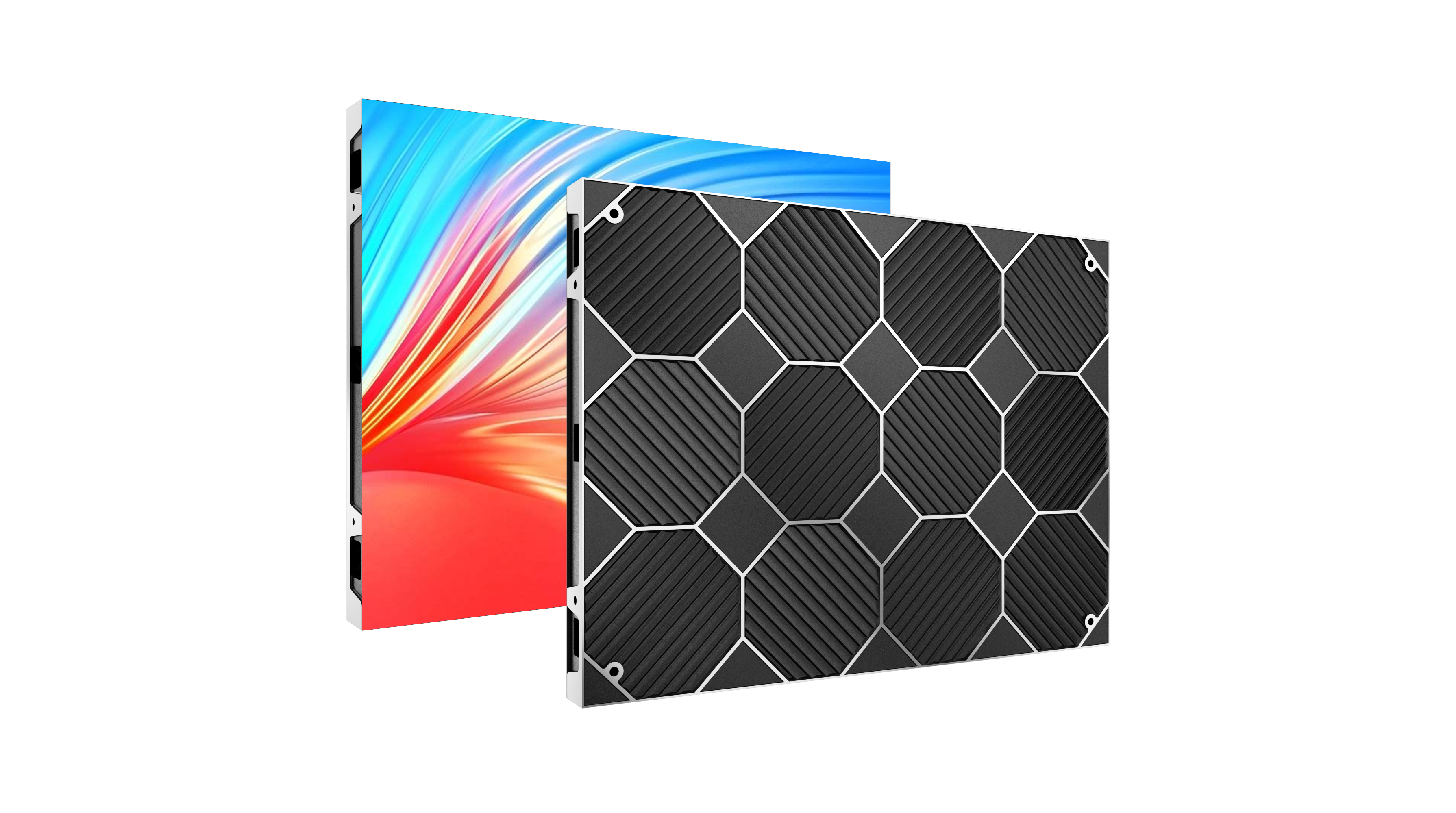

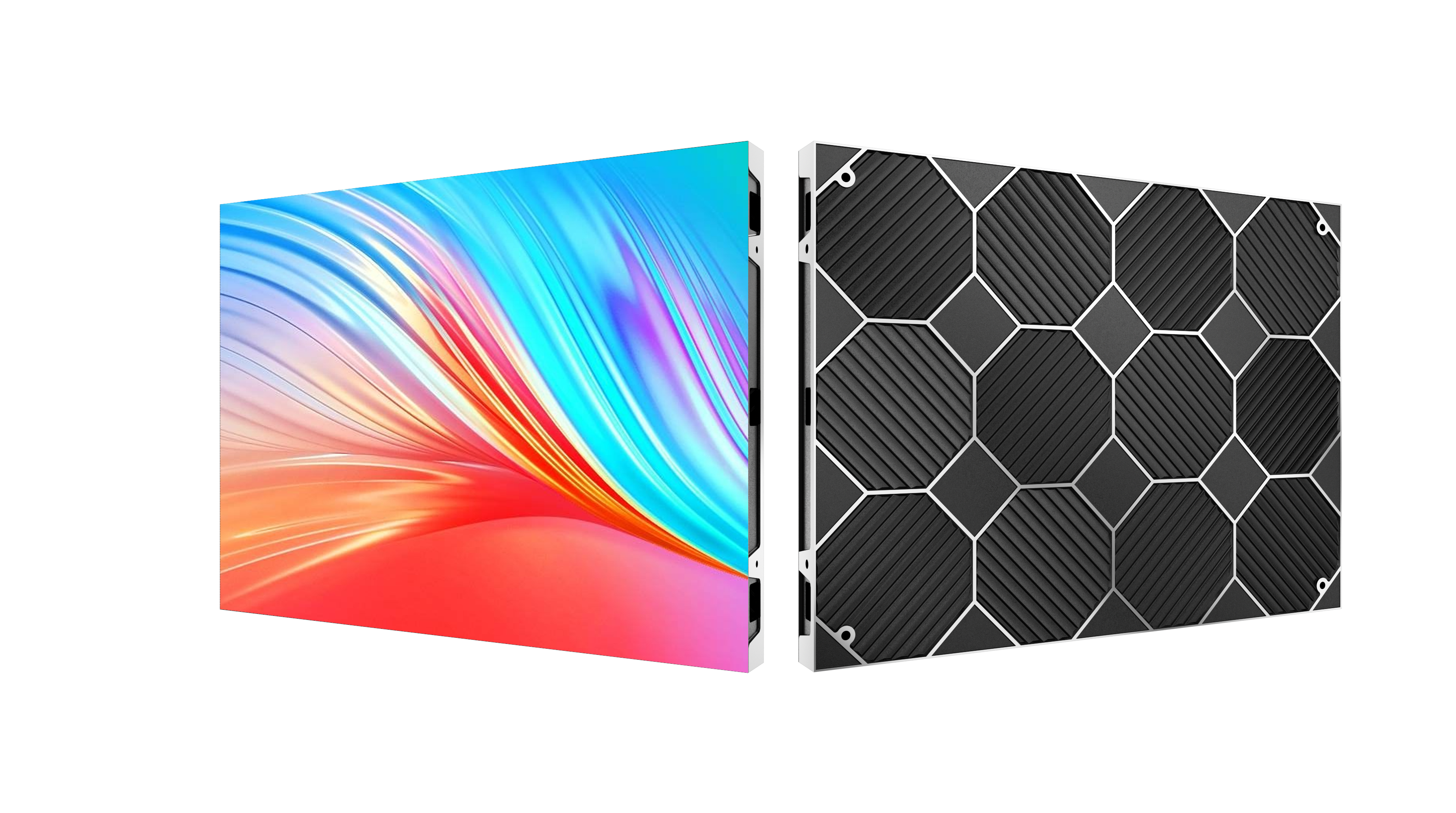

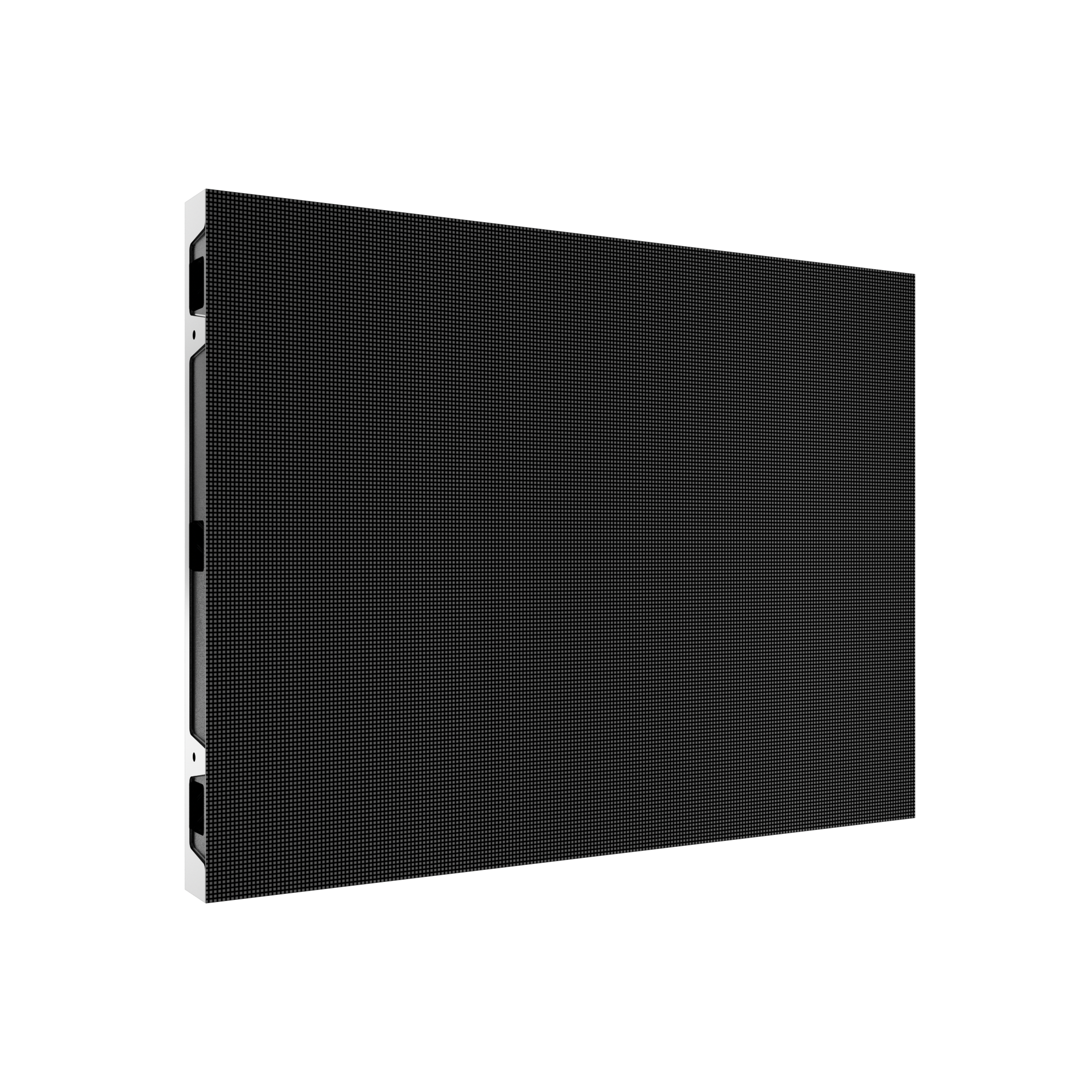

HL-F640X480 Fine Pitch Series has the frame of honeycomb. The Cabinet is made precisely through CNC machines, and is capable to keep firm in structure when under stress, and dissipate heat quickly. Inside the structure, all modules are mounted directly, cordlesly. It also allowes redundancy system and PSU unit.
Product Description
HL-F640X480 Fine Pitch Series
3RD GENERATION CABINET, Transforming/Thin/Smart/Cost-benefit.
|
Customized Design
HL-F640X480 Fine Pitch Series is also tailor-made for specifice demands is sizes. Which, currently supports only seperated connection of power and signal ports. Everything brings great benefits to the user and provides a wealth of choices.
|
 |
 |
Multi-Functional Shape-Transforming

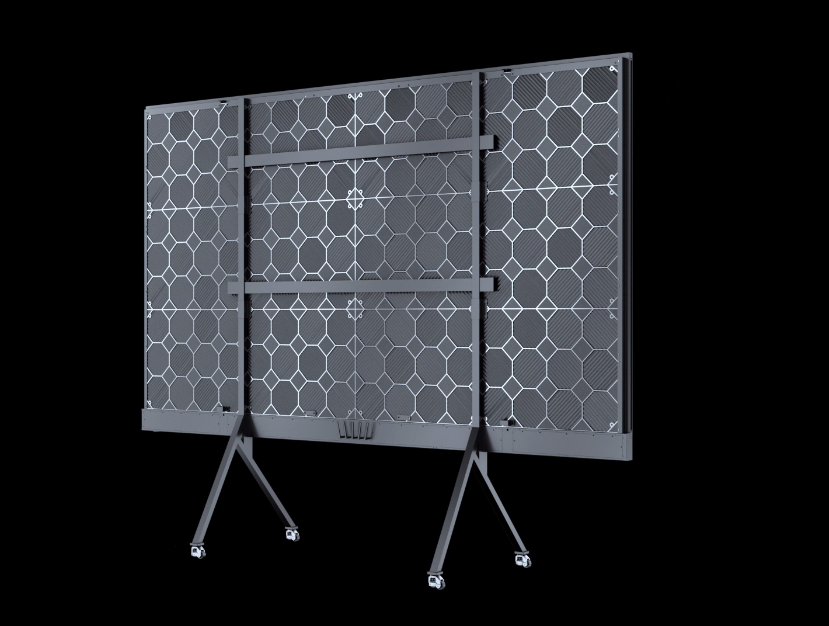

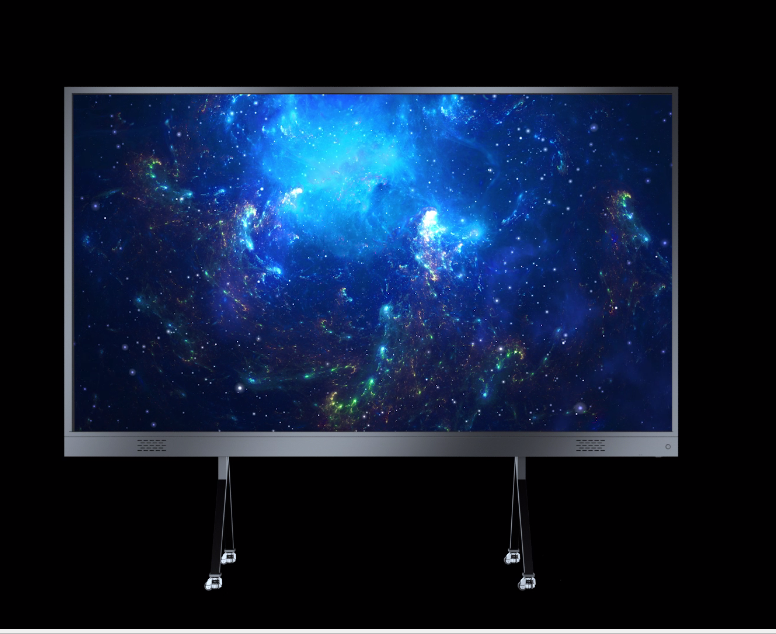

To suit various sizes of the led screen, HL-F640X480 Fine Pitch Series changeble to make different shapes and sizes, functioning the right roles. |
|
|
Technical Parameters
| Indoor fixed Fine Pitch (HL-X1 Series) | ||||
| Pixel Pitch | 1.25mm | 1.53mm | 1.86mm | 2.5mm |
| LED | SMD 1010 | SMD1212 | SMD1212 | SMD1515 |
| Screen Size(W*H) | 640mm * 480mm | |||
| Screen Resolution(W*H) | 512*384 | 416*312 | 344*258 | 256*192 |
| Refresh Frequency | 3840Hz/7680Hz | |||
| Cabinet Weight | 7.2KG | |||
| Brightness(nits) | >600 | |||
| Color temperature | 6500K (Adjustable) | |||
| Grayscale Level | 14-16bits | |||
| Viewing Angle | 160°/160° | |||
| Input Voltage | 110-220VAC | |||
| Max.Power Consumption | 500W/m² | |||
| Ave.Power Consumption | 160W/m² | |||
| IP Rating | IP30 | |||
| Operating Equipment | PC with Novastar controler or other | |||
| Certification | RoHS/FCC/CE | |||
* Above parameters are typical values, which are adjustable according to different project reqiurements.
