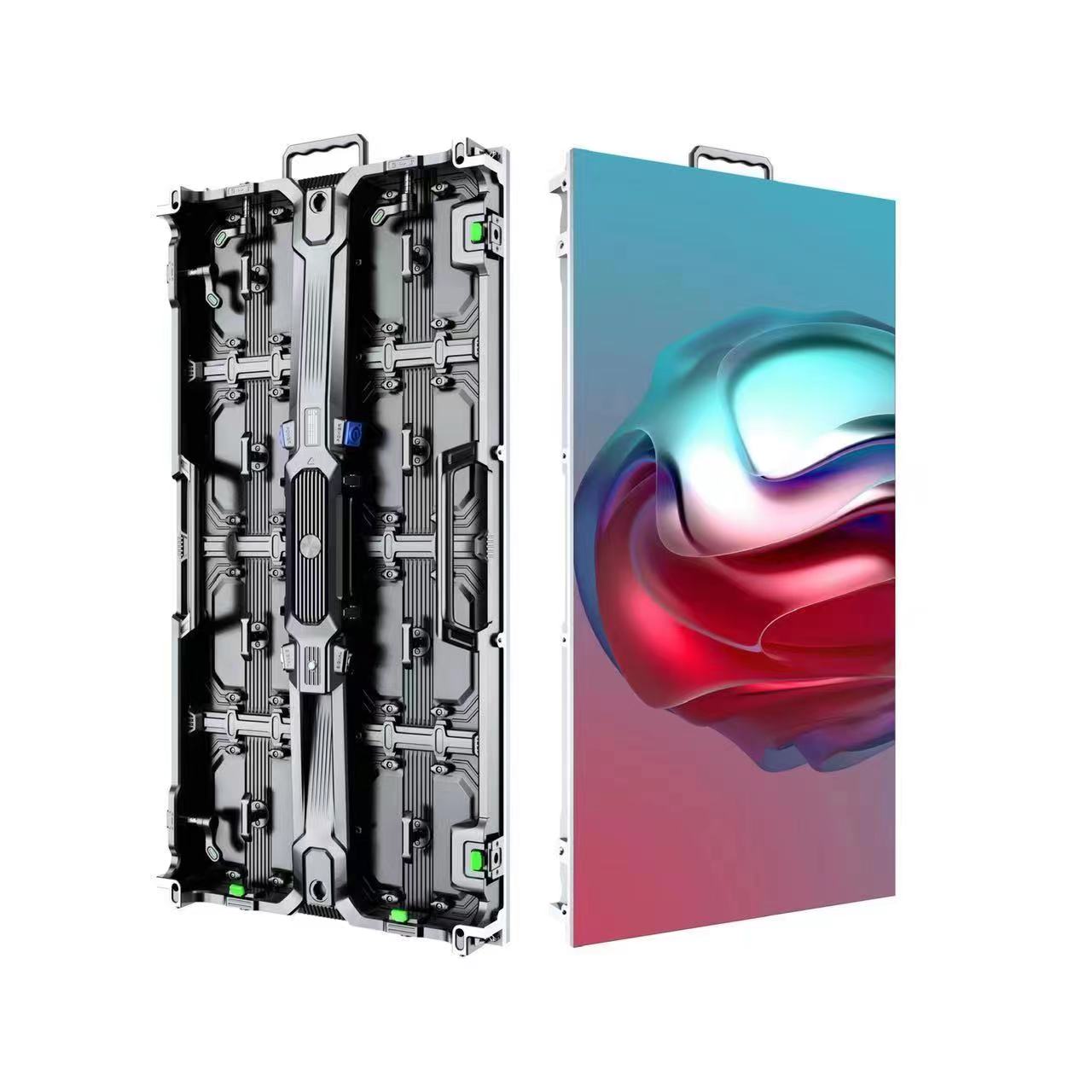

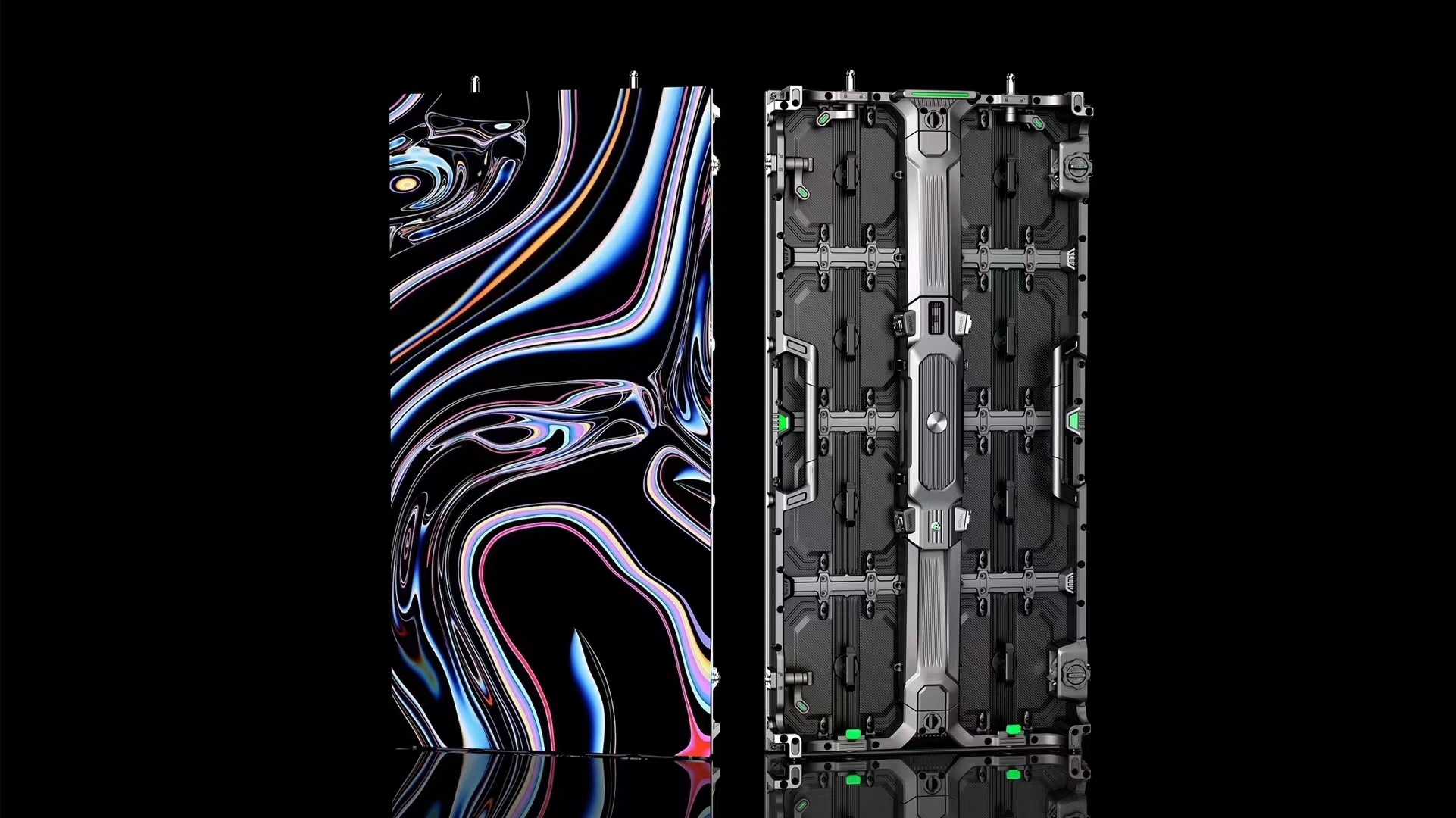

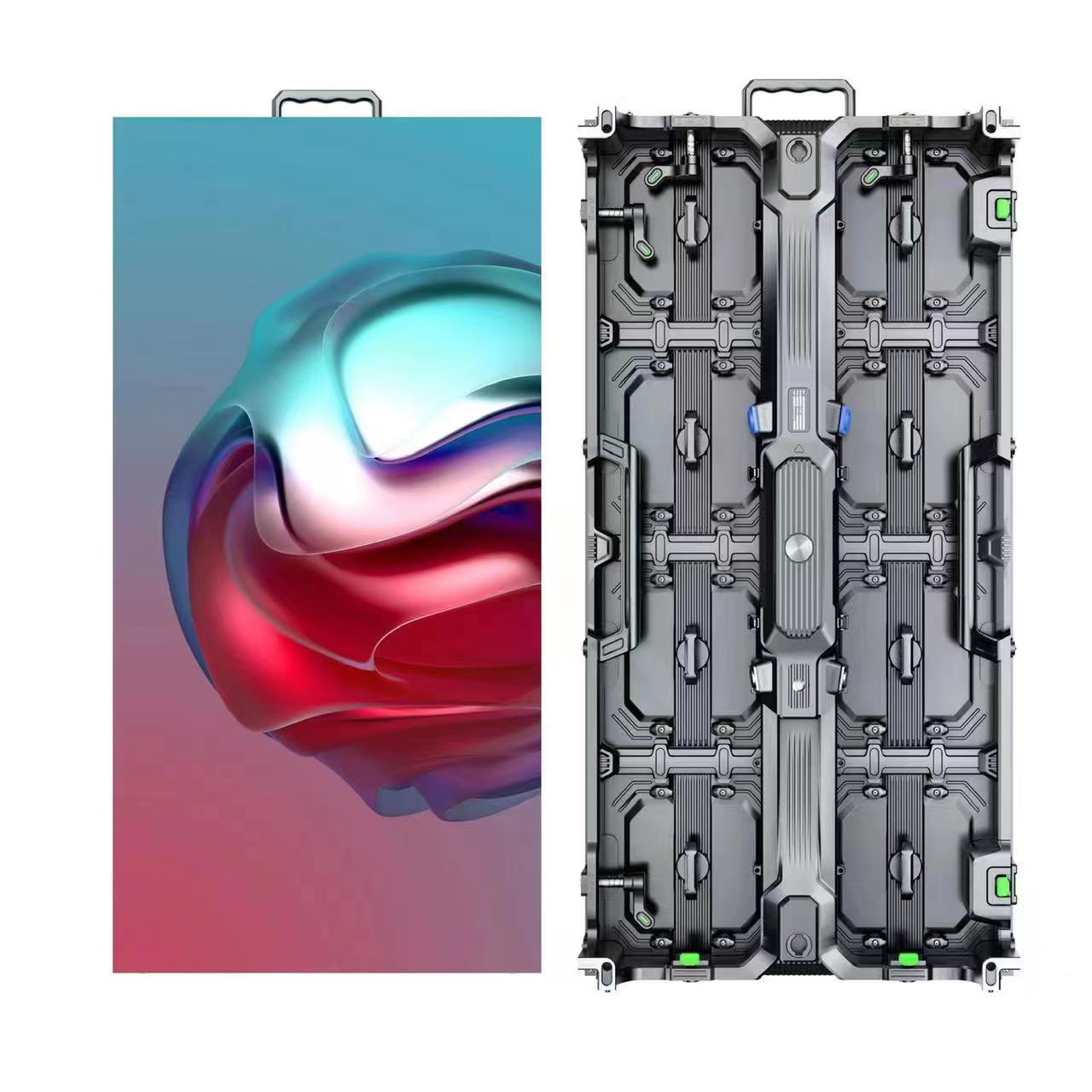

Outoor Rental LED Screen (HL-H pro Series)
Pixel Pitch outdoor: 2.6mm ,2.9mm,3.9mm,4.8mm
Weight :12.0KG/Panel

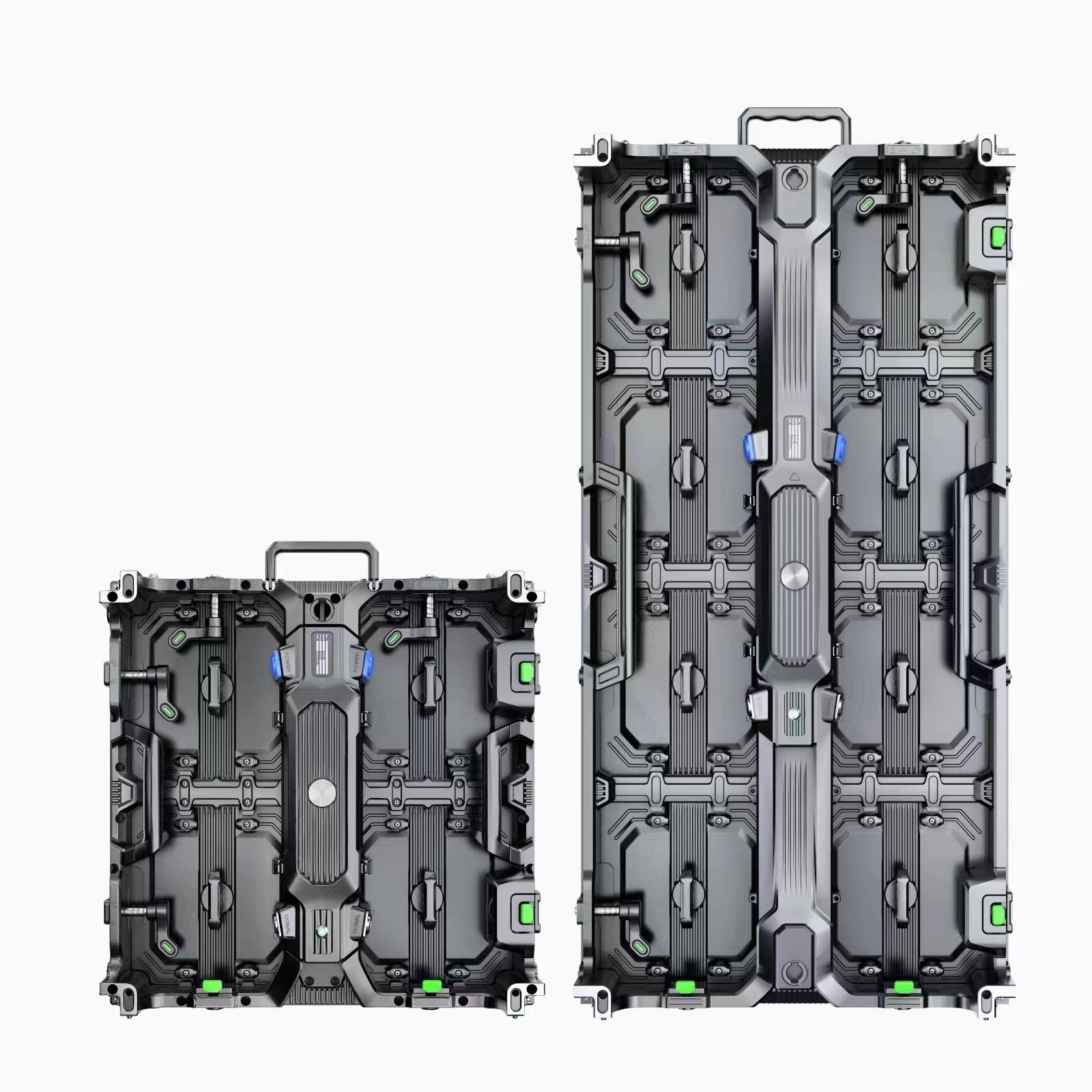

Solid Aluminum die casting panel design , 8:9 cabinet ratio ,standard aspect ratio perfectly achieve full HD 4K,8K resolutions
Support front and back maintain ,the power box is swap-able and can be maintain from front side with high protection waterproof for both outdoor and indoor use
With good LED Chip to reach the high color contrast to adapt indoor use as well .Support Dual Signal back up
Product Description
Highlight LED offers a complete range of Indoor Rental LED Display products for events, stages, stores, television studios,boardrooms, professional AV installations and other venues. You can choose the right series for your rental applications. Pixel Pitch from P2.6mm to P4.81mm for Outdoor Rental LED Display .
|

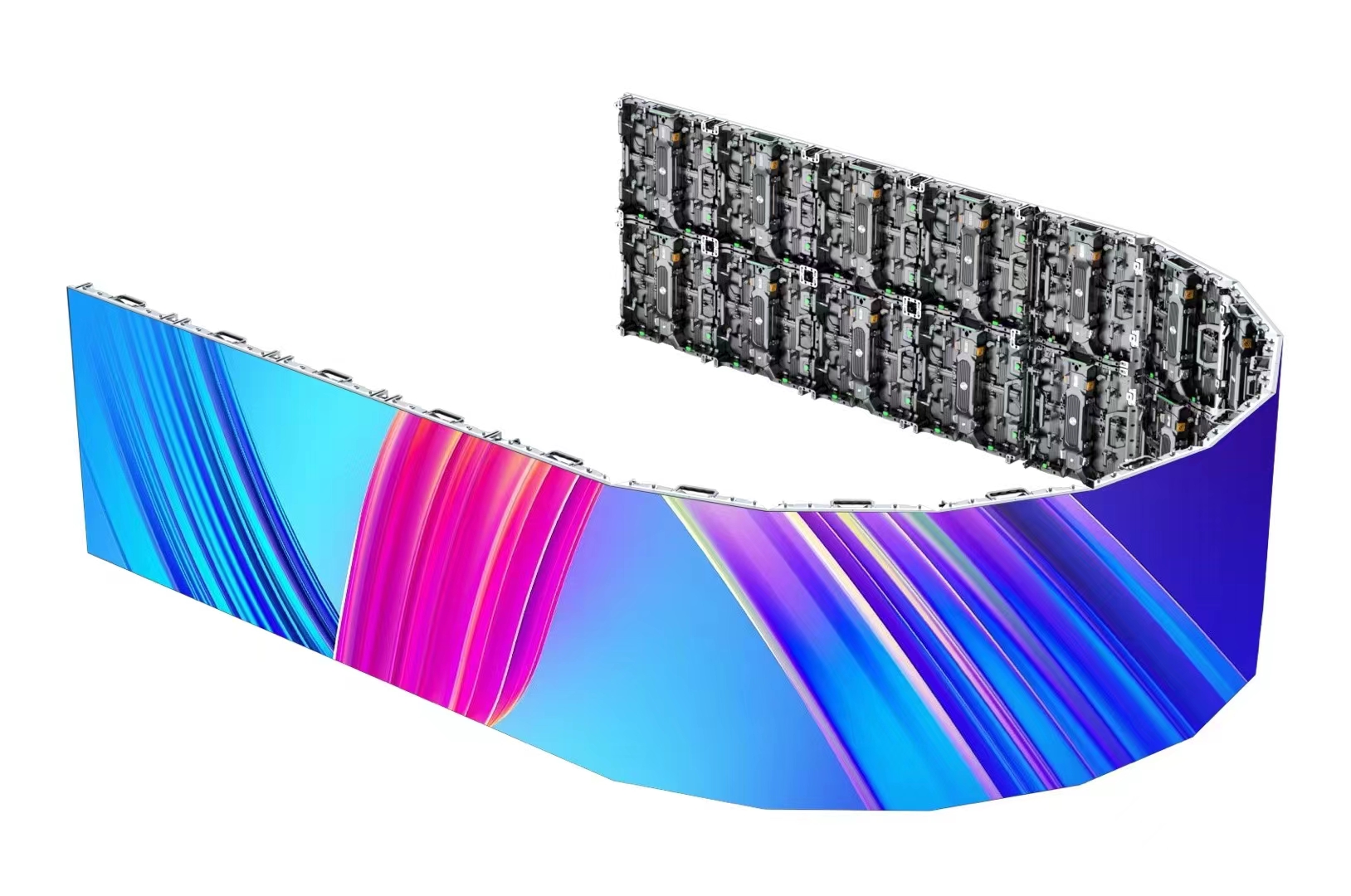

Curved&Corner Cabinet Design
Meet different Shapes and Radians needs:
---The straight &arc lock cabinet,can be combined with each other
Adjustable angle ：-5 ° 、-2.5 °、 2.5 °、 5 °
|
 |
 |
Modular Design
Power box modular design can be quickly plugged.
|
Technical Parameters
| Outdoor Rental Cabinet (HL-H pro Series) | ||||
| Pixel Pitch | 2.6mm | 2.9mm | 3.9mm | 4.8mm |
| LED | SMD1415 | SMD1921 | ||
| Screen Size(W*H) | 500mm * 1000mm | |||
| Screen Resolution(W*H) | 192*384 | 168*336 | 128*256 | 96*192 |
| Refresh Frequency | 3840Hz | |||
| Cabinet Weight | 12.0KG | |||
| Brightness(nits) | >4000 | >4500 | ||
| Viewing Angle | 160°/160° | |||
| Input Voltage | 110-220VAC | |||
| Max.Power Consumption | 650W/m² | |||
| Ave.Power Consumption | 220W/m² | |||
| IP Rating | IP65 | |||
| Operating Equipment | PC with Novastar controler or other | |||
* Above parameters are typical values, which are adjustable according to different project reqiurements.
Related Application
 |
 |
| 280sqm P3.91mm ECS show in EU | 48sqm P2.9mm Curved screen |
